INSPECTION SOLUTIONS
BliSecure®

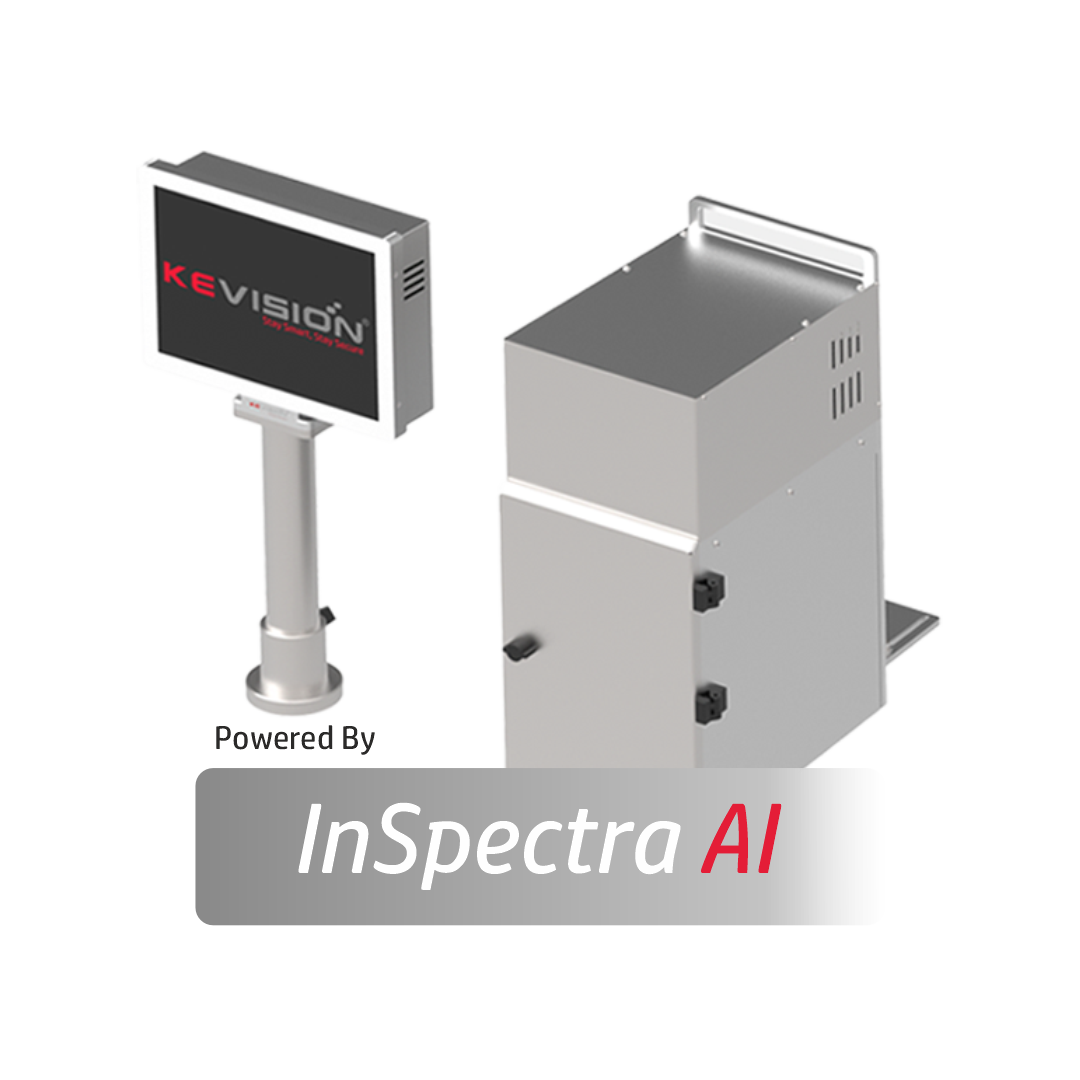

BliSecure is a high-resolution Vision (Camera) based verification system used for inspection of pharmaceuticals products (Tablets & Capsules) on various forming materials. The system is typically installed on blister packaging lines. The system is equipped with InSpectra Ai to provide a very high recognition capability that is suited to a wide range of products & foils in blister packaging machines.
Special Features
- Ai Based 1 Step Easy-Teach
- Automatic tolerance setting for images
- Recipe wise Teaching
- Recipe wise Backup
- OEE support in Blister software along with Predictive OEE
- Audio/Video Guidance in BliSecure software
- LDAP Enabled
Standard Features
- Precise & accurate inspection of all geometric and color characteristics of products (Tablets and Capsules).
- Inspection of products on transparent, opaque and aluminum foil. Suitable for both continuous & intermittent operating machines.
- Automated Teach-IN procedure.
- Integration Capability : Seamless Integration with all makes of Blistering Machines.
- Inspection Speed : up to 600 inspections/minute.
- Inspection Capability : multiple blisters up to 350 mm foil width.
- User Friendly GUI and simple to operate.
- Rejection : Track wise rejection output.
- Software Complies to the requirements of 21 CFR Part 11.
BliSecure®
Detection Capabilities
AI-powered visual inspection across all defect types
Colour
Color on Color
Detects colour contamination or mismatched product colours within the same blister cavity
Structural
Broken / Cracked Product
Identifies physical fractures, chips, or breakage in tablets and capsules before packaging
Capsule
Hard Gelatin Capsules
Inspects hard gelatin capsules for defects, deformities, and seal integrity issues
Missing
Empty Cavity
Flags blister pockets with missing products — zero tolerance for empty cavities at dispatch
Variation
Size / Color Variation
Measures dimensional and colour deviations against reference specs for each product batch
Capsule
Soft Gelatin Capsules
Inspects softgel capsules for leakage, deformation, and surface imperfections
Contamination
Color Spots
Detects foreign colour spots, stains, or surface contamination on product surfaces
New
Powered by InSpectra AI
Beyond Rules. Into Intelligence.
InSpectra AI —
The Neural Engine of BliSecure
The Neural Engine of BliSecure
Traditional inspection systems rely on rigid, rule-based algorithms that struggle with environmental variables and complex foil reflections. BliSecure is now equipped with InSpectra AI — a proprietary neural-network intelligence that transforms vision inspection from a configuration task into a learning process.
💡
1-Step AI-Based Teaching
Show the system a single "Golden Sample" and InSpectra AI autonomously identifies cavities, blister boundaries, and product zones in seconds — no manual tuning required.
🧠
Heuristic Defect Classification
The neural engine understands texture, depth, and colour nuances to distinguish benign environmental noise from genuine product defects — far beyond pixel counting.
⚙️
Adaptive Thresholding
InSpectra AI constantly adapts to your production environment, virtually eliminating false rejects caused by changing ambient light or fluctuating foil glare.
✅
Zero-Expert Operation
Operators achieve expert-level accuracy without specialised vision training. Complex inspection logic is fully automated — empowering your floor team from day one.
"InSpectra AI doesn't just see your product; it understands it. Experience 100% quality assurance with the industry's most intuitive intelligence layer."
— InSpectra AI by Kevision
Products
BLIS - VENUS
- Maximum Format Area : 260mm × 180mm
- Inspection Speed : 600 Inspections / Minute
- Mount Hood Size : 300mm x 470mm x 210mm
Products
BLIS - JUPITER
- Maximum Format Area : 300mm x 180mm
- Inspection Speed : 300 Inspections / Minute
- Inspection Capability : Multiple Blisters up to 300 mm Web
- Mount Hood Size : 340mm x 470mm x 210mm
Products
BLIS - NEPTUNE
- Maximum Format Area : 350mm x 200mm
- Inspection Speed : 350 Inspections/Minute
- Inspection Capability : Multiple Blisters up to 350 mm Web
Products
BLIS - SATURN
- Maximum Format Area : Up to 350mm web Width
- White on White : Inspection of white tablets on white PVC base foil
- Color on Color : Inspection of color Tablets (Grey , Pale Yellow , & Brown ) on same color base foil
- Inspection Capability : Multiple blister up to 350 mm Web
- Integration Capability : Seamless integration with all makes of blistering machines.
Partner with Kevision
Choose Kevision's Line Manager Server Software for a streamlined serialization and production data management experience. Our robust solution empowers supervisors and production teams with easy-to-use tools and comprehensive reporting capabilities, enabling efficient serialization processes and adherence to regulatory standards.
Contact us today to learn more about our industry-leading software and how it can optimize your serialization operations.
